Description
Pourquoi choisir le HDF8 ?

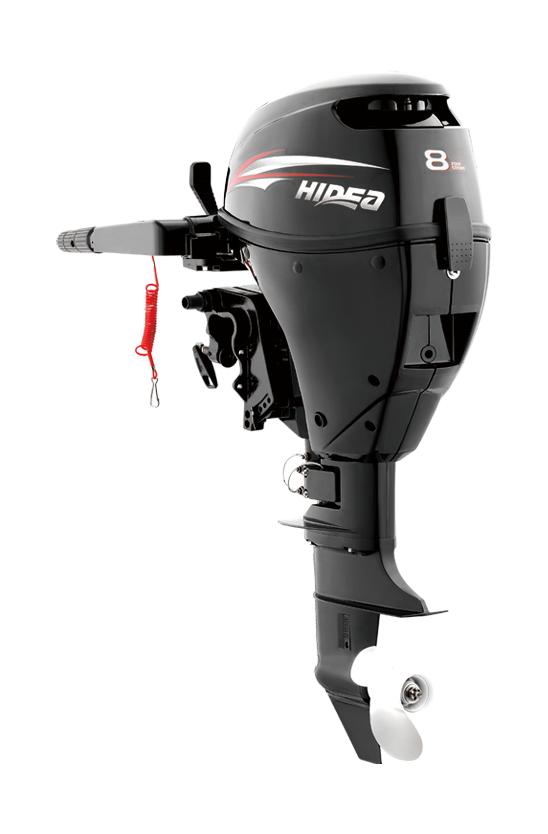

Le moteur Hidea HDF8 est spécialement conçu pour offrir un fonctionnement fluide, silencieux et une excellente économie de carburant. Sa légèreté et sa compacité en font un choix privilégié pour une large variété d’embarcations et de scénarios de navigation.
Caractéristiques principales et technologie:
-
- Digital CDI ignition:
Allows for faster engine starting, instant throttle response, and smooth low-speed operation (trolling).
-
- Integrated hour meter:
Equipped with an hour meter to precisely track engine usage and simplify periodic maintenance and servicing.
-
- Superior ride comfort (optimized NVH):
Significantly reduced vibration for stable operation at all speeds.
Air intake noise is also minimized to ensure very quiet operation.
- Quick and easy start-up:
Manual recoil starter featuring a large pulley to minimize pulling effort, or an electric start option depending on your needs.
Marine-grade corrosion protection
- PPG American Paint:
The engine features a six-layer PPG paint finish, providing a superb aesthetic look and a robust barrier against the marine environment.
- High-quality aluminum alloy:
Constructed from a premium-grade aluminum alloy to resist electrolysis and corrosion.
- Sacrificial anodes:
Zinc anodes protect the engine's internal and external components against galvanic corrosion.
- Sheltered waterways:
The internal cooling passages undergo a zinc-plating treatment to ensure the long-term durability of the cylinder head and block.
- Stainless steel water pump:
The water pump body is lined with stainless steel to withstand sand and salt.
Ease of use and equipment
- Through-propeller exhaust:
Exhaust gases are discharged underwater through the propeller hub to reduce noise and odors on board.
- Thermostatic cooling system:
A thermostat maintains a constant engine temperature for optimal operation, regardless of the water temperature.
- Adjustable steering friction:
Allows for the adjustment of steering stiffness to reduce driver effort or maintain a heading more easily.
- Navigation in shallow waters:
Multi-position lift system for safe navigation in shallow waters.
- 12-liter external tank:
Supplied complete with a 12 L (3.1 US gal) fuel tank featuring an integrated fuel gauge, and an aluminum propeller.
Technical parameters
| Characteristic | Value |
|---|---|
| Rated power (kW) | 5,9 kW (8 CV) |
| RPM Range | 4500-5500 |
| Engine type | 4 temps — bicylindre en ligne |
| Cylinders | 2 |
| Displacement (cc) | 212 cc |
| Bore × Stroke (mm) | 56 × 43 |
| Weight | S (arbre court) : 42,5 kg (94 lb) L (arbre long) : 43,7 kg (96 lb) |
| operating position | Forward-Neutral (F-N) |
| Ignition system | CDI (numérique) |
| Starting method | Manuel (lanceur) ou électrique (selon modèle) |
| operation mode | Barre franche ou commande à distance (selon modèle) |
| Réservoir de carburant | Externe de 12 litres (3,1 US gal) avec jauge incluse |
| Cooling system | Water cooling under thermostatic control |
